1 Are the sound absorption products fire retardant? - Yes, all of the sound absorption products have fire retardants chemically added to the foam's formula.
2 What would happen if the sound absorption products were exposed to fire? - The foam will smolder and smoke, but it will not burst into flames. After the source of fire is removed, the foam will burn slowly and have a high probability to "self-extinguish". VADCON does not encourage exposing any foam to extreme heat or fire.
3 What information is needed to pass my building codes? - Be sure to check requirements in your area before ordering/installation. The foam has been tested in accordance with ASTM E84 and NFPA 255 for surface burning and meets a "Class A" or "Class 1" standard. Class A represents that the material will not burn or smoke much - these products register a 25 Flame Spread Index and a 250 Smoke Spread Index.
Stock Number: E12122
25 Pieces Available
1-25 $1.99 ea.
Weight - 1.00
D Code-1
Stock Number: C12122
60 Pieces Available
1-60 $1.99 ea.
Weight - 1.00
D Code-1
Stock Number: C16162
5 Pieces Available
1-5 $2.99 ea.
Weight - 1.50
D Code-1
Stock Number: C24241
6 Pieces Available
1-6 $3.29 ea.
Weight - 1.50
D Code-1
Stock Number: C24242
4 Pieces Available
1-4 $3.99 ea.
Weight - 2.00
D Code-1
Stock Number: C24244
3 Pieces Available
1-3 $5.99 ea.
Weight - 3.00
D Code-1
Stock Number: P12122
34 Pieces Available
1-34 $1.99 ea.
Weight - 1.00
D Code-1
Stock Number: P24244
2 Pieces Available
1-2 $6.99 each
Weight - 4.00
D Code-1
Foam may be rolled/folded/compressed for shipping - please allow all foam to lay flat for at least 24 hours before installation.
Due to the manufacturing process of foam, sizing may not be exact between pieces - some variances can occur.
| Dimensional Tolerances | |||
| Foam Type | Each Length | Each Width | Thickness |
| Contour Tiles | ± 1/4" | ± 1/4" | ± 1/4" |
| Pyramid Tiles | ± 1/4" | ± 1/4" | ± 1/4" |
| Corner Blocks | ± 1/4" | ± 1/4" | ± 1/4" |
| Bass Traps | ± 1/4" | ± 1/4" | ± 1/4" |
Your local hardware store will have tubes of adhesive appropriate for the installation of foam.
Many apply the foam to a backer board (cardboard, plywood, etc.) and then mount/hang the backer board - this method allows the foam to be moved or removed in the future without damage to the foam, or the mounted surface.
Pyramid Foam Installation - side by side alternate, or spaced.
Contour Foam Installation - side by side alternate, or spaced.

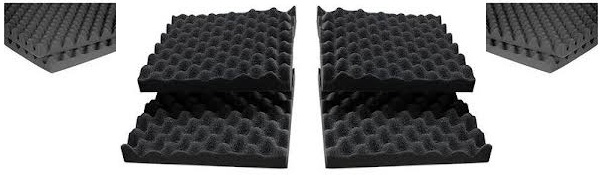

Egg Crate Foam Installation - not suggested for side by side installation.

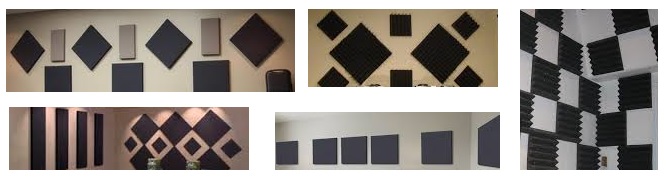

A popular way to install foam is spaced out, and/or with random designs:

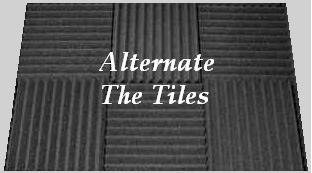

If installing foam side by side it is suggested to alternate the tiles and best to leave at least a 1/8" gap between the tiles to allow for slight differences in tiles sizes.
The higher the rating, the more sound absorbed by the material.
| 2" Contour Tiles | 2" Egg Tiles | 2" Pyramid Tiles | 4" Pyramid Tiles | |
| 125 HZ | 0.20 | 0.19 | 0.19 | 0.28 |
| 250 HZ | 0.29 | 0.22 | 0.22 | 0.39 |
| 500 HZ | 0.66 | 0.45 | 0.45 | 0.74 |
| 1000 HZ | 0.80 | 0.55 | 0.55 | 0.69 |
| 2000 HZ | 0.89 | 0.60 | 0.60 | 0.75 |
| 4000 HZ | 1.02 | 0.76 | 0.76 | 0.96 |
| Overall NRC | 0.65 | 0.45 | 0.45 | 0.65 |
