Adapter Plate Interface Assemblies

Handy Interface Assemblies with 4 or 8 spaces to fill any way you want with Adapter Plate products or D Series connectors.
These mount anywhere - work bench, test bench, desktop, a/v unit, etc. Only 3" Deep, 4" Tall and 5.25" Wide!
Connector Plate can be mounted straight or angled for best access.

Adapter Plate Interface Assemblies Group

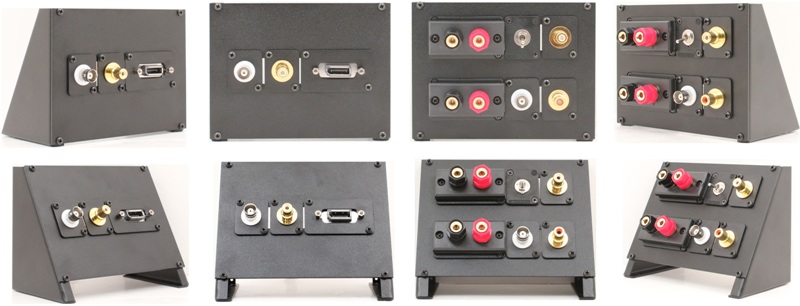

Sample Interface Assemblies shown with multiple types of connectors - order and put together yourself,
or let us know what you want and we'll assemble for you - usually within 1 business day!

Common Questions & Answers

1 Other Adapter Plate Products? - Adapter Plate Product Menu

2 Connectors for Adapter Plate Products? - Adapter Plate Connectors

3 Unloaded or Blank Adapter Plates? - Unloaded Adapter Plates

4 How are the adapter plates to be mounted? - The mounting holes in the Adapter Plate Interface Assemblies are tapped to accept 4-40 machine screws - found below.

5 Adapter Plate Interface Assemblies In Stock? - Adapter Plate Interface Assemblies are generally in stock and ready to ship, but inventory does change daily. Feel free to contact us to confirm your immediate needs.

4 Space Adapter Plate Interface Assembly - Unloaded

Adapter Plate 4 Space Interface Assembly

Interface Assemblies shown in both straight and angled orientations.
Two Interface Assemblies are pictured above for illustration only.

Assembly Info

Stock Number: IAA4

1-9 $32.99 ea.
10+ $31.34 ea.
25+ $30.52 ea.
50+ $29.69 ea.
100+ $28.87 ea.

Hole Size - Adapter Plate or D Series
Weight - 1.50
D Code-1

8 Space Adapter Plate Interface Assembly - Unloaded

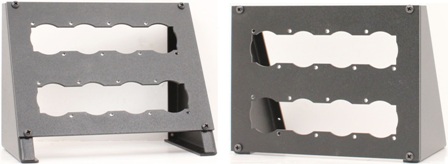

Adapter Plate 8 Space Interface Assembly

Interface Assemblies shown in both straight and angled orientations.
Two Interface Assemblies are pictured above for illustration only.

Assembly Info

Stock Number: IAA8

1-9 $34.99 ea.
10+ $33.24 ea.
25+ $32.37 ea.
50+ $31.49 ea.
100+ $30.62 ea.

Hole Size - Adapter Plate or D Series
Weight - 1.50
D Code-1

4-40 Machine Screws

The mounting holes in the Adapter Plate Interface Assemblies
are tapped to accept 4-40 machine screws.

Each adapter plate or connector will require 2 screws each.

1-99 $.06 ea.
100+ $.05 ea.

Weight - .01
D Code-1

Flat Recessed Head
1/4" Long - Stainless Steel

Stock Number: H34BI16ZG

Flat Recessed Head
1/4" Long - Black Oxide

Stock Number: H34BI16ZI

Flat Recessed Head
3/8" Long - Stainless Steel

Stock Number: H34BI20ZG

Flat Recessed Head
3/8" Long - Black Oxide

Stock Number: H34BI20ZI

Pan Head
1/4" Long - Black Oxide

Stock Number: H38BI16ZI

Pan Head
1/2" Long - Black Oxide

Stock Number: H38BI24ZI

Assemblies Made In The USA
